Product Description:
The Expandable Clamshell Arm is a versatile and reliable telescopic arm system specifically engineered for a wide range of excavation and material handling tasks. It incorporates hydraulic cylinders and wire ropes to ensure smooth and safe operation. With a maximum digging depth of 11,825mm, a maximum vertical digging radius of 6,430mm, and a maximum digging radius of 4,670mm, the clamshell arm offers exceptional reach and flexibility. Weighing 3,600kg, it is a robust choice for demanding and challenging jobs. The Extendable Clamshell Arm is designed for ease of assembly, operation, and maintenance, making it an excellent option for various excavation and material handling applications. It can be easily adapted to suit different environmental or workspace requirements, providing enhanced versatility and adaptability.
Features:

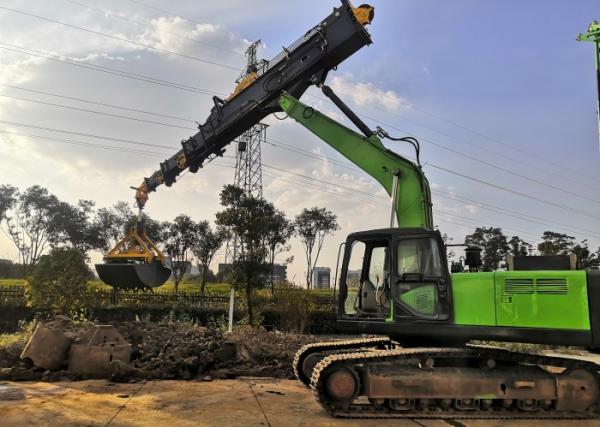

The telescopic arm is a working device installed on the excavator. It can help extend and retract the mobile body to achieve a larger excavation radius and a reasonable loading height, which is an advantage of the excavator in many occasions.
The telescopic arm composed of a fixed body and a mobile body. Through the action of the telescopic cylinder, the two bodies can separate and move freely, so that they can increase and decrease the total length of the telescopic arm.
Technical Parameters:
| Parameter |
Value |
| Max.Vertical Digging Radius |
6430mm |
| Weight of Bucket |
520Kg |
| Color |
Silver |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) |
11825mm |
| System |
Hydraulic Cylinder&Wire Rope |
| Max. Digging Radius(Reach Max. Digging Depth) |
4670mm |
| Bucket Capacity |
0.3m³ |
| Max. Digging Depth |
15200mm |
| Weight |
3600kg |
| Recommended excavator capacity |
>=15ton |
Applications:
APIE KM150 Clamshell Telescopic Arm is perfect for use in various excavator-related applications. With a recommended excavator capacity of ≥15ton, this extendable clamshell arm can extend up to 4670mm for maximum digging radius, and up to 11825mm for maximum digging depth. It has a weight of 3600kg and bucket capacity of 0.3m³. It is made in China, sold in units of 1set, with a minimum order quantity of 1set, and a price of 31430. Delivery time is 20days, and payment terms are T/T. Packaging details include a wooden box. This telescopic clamshell arm is a great choice for excavators, and it can help increase the efficiency of any excavation project.
Customization:
Clamshell Telescopic Arm
Brand Name: APIE
Model Number: KM150
Place of Origin: China
Minimum Order Quantity: 1set
Price: 31430
Packaging Details: Wooden
Delivery Time: 20days
Payment Terms: T/T
Max. Digging Radius(Reach Max. Digging Depth): 4670mm
Max. Digging Depth: 15200mm
System: Hydraulic Cylinder&Wire Rope
Weight of Bucket: 520Kg
Max.Vertical Digging Radius: 6430mm
We offer Telescopic Clamshell Arm, Clamshell Telescopic Arm and Extendable Clamshell Arm with excellent performance. The Max. Digging Radius(Reach Max. Digging Depth) is 4670mm and the Max. Digging Depth is 15200mm. The Max.Vertical Digging Radius is 6430mm. This product uses Hydraulic Cylinder&Wire Rope system and the weight of bucket is 520 kg. Place your order now at APIE and enjoy maximum digging radius and depth.
Packing and Shipping:
Packaging and Shipping
Clamshell Telescopic Arm is carefully packaged and shipped in a secure box to ensure that it arrives undamaged. The box should contain the following:
- Clamshell Telescopic Arm
- Instructions
- Mounting hardware
Before shipping, the Clamshell Telescopic Arm should be tested for any defects or damage. Once it is confirmed to be free of any issues, the product should be securely packaged to protect it during transit.
FAQ:
- Q: What is the brand name of the Clamshell Telescopic Arm?
A: The brand name is APIE.
- Q: What is the model number of the Clamshell Telescopic Arm?
A: The model number is KM150.
- Q: Where is the Clamshell Telescopic Arm manufactured?
A: It is manufactured in China.
- Q: How many Clamshell Telescopic Arms can be ordered at one time?
A: The minimum order quantity is 1 set.
- Q: What is the price of the Clamshell Telescopic Arm?
A: The price is 31430.
